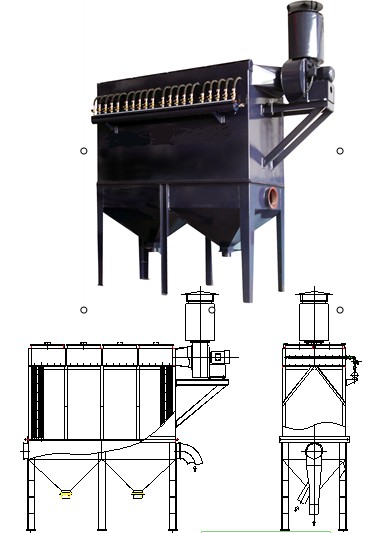

KCC-160 Bag Type Pulse Dust Collector


Application:

This dust collector is specially designed by our company with years of research and development, which is utilized for the de-dusting process in ceramic tile dry-squaring machine, press, spray dryer and other equipment, with its reasonable optimization design that features the product reliable, efficient, low energy consumption, convenient maintenance and the advantages of a new generation of the ideal environmentally friendly products. This equipment employs a high-quality polyester needle felt filtering bag, which features both moderate porosity, good

Parameter:


Main technical parameter:

· Air handling capacity: 14000m3/h

· Blower power: 15kw

· Filtering area: 112 m2

· Filtering air speed: 2m/min

· Blowing time: 0.12~2.55s (adjustable)

· Blowing cycle: 1~8min (adjustable)

· Qty. of filter bag: 160pcs

· Dust removing efficiency: 99%

· Dimension: 5500*2300*5800mm
