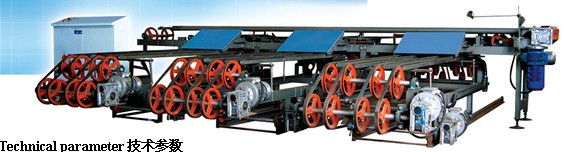

| Automatic Unloading Machine |
| It is a new type automatic machine which is used for polishing line tile unloading. The structure of the machine is very simple. PLC integration control system, convenient operation, uses three-track railcar as carrier and green tile holding device. It’s optional to stand the tiles from kiln in left, middle or right position. Simultaneously achieve two-way tiles unloading. It is suitable for the large production, also reduce labor strength. |
Technical parameter
|
Rail quantity of tile frame
砖架轨道数 |
Applicable tile size (mm)
适应砖坯尺寸 |
Capacity (m2)
产量 |
Dimension (mm)
外形尺寸 |
Total installed power
(kw)
总装机功率 |
Weight (kg) 设备重量 |
|
Three rail三轨 |
500×500-1200×1200 |
7500 |
4700X4400X980 |
7.5 |
8500 |
|
Four rail四轨 |
500×500-1200×1200 |
10000 |
6500X4400X980 |
8.25 |
10000 | |
|
